Creating a Super-Fast and Super-Easy DotNetNuke® Module
For absolute beginners! (For DotNetNuke Version 4.3) - Page 4 (Page 3)

Complete The Code

The steps that remain are:





In the previous step you will have opened your DotNetNuke website in the web browser at this point.
Click LOGIN
Log in as "host". The password (if you haven't already changed it) is also "host"

Create the tables and stored procedures

Click on the HOST menu and select SQL

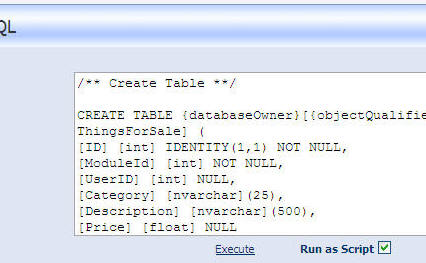

Paste the following script in the box:





/** Create Table **/

CREATE TABLE {databaseOwner}[{objectQualifier}ThingsForSale] (
[ID] [int] IDENTITY(1,1) NOT NULL,
[ModuleId] [int] NOT NULL,
[UserID] [int] NULL,
[Category] [nvarchar](25),
[Description] [nvarchar](500),
[Price] [float] NULL
) ON [PRIMARY]

ALTER TABLE {databaseOwner}[{objectQualifier}ThingsForSale] ADD
CONSTRAINT [PK_{objectQualifier}ThingsForSale] PRIMARY KEY CLUSTERED
([ID]) ON [PRIMARY]

GO

/** Create Stored Procedures **/

CREATE PROCEDURE {databaseOwner}[{objectQualifier}ThingsForSale_Delete]
@ID int
AS
DELETE FROM {objectQualifier}ThingsForSale
 WHERE (ID = @ID)
RETURN
GO

CREATE PROCEDURE {databaseOwner}[{objectQualifier}ThingsForSale_Insert]
@ModuleId int,
@UserID int,
@Category nvarchar(25),
@Description nvarchar(500),
@Price float
AS
INSERT INTO {objectQualifier}ThingsForSale
(ModuleId, UserID, Category, Description, Price)
VALUES (@ModuleId,@UserID,@Category,@Description,@Price)
RETURN
GO

CREATE PROCEDURE {databaseOwner}[{objectQualifier}ThingsForSale_SelectAll]
@ModuleId int
AS
SELECT ID, ModuleId, UserID, Category, Description, Price
FROM {objectQualifier}ThingsForSale
 WHERE (ModuleId = @ModuleId)
ORDER BY Category
 RETURN
GO

CREATE PROCEDURE {databaseOwner}[{objectQualifier}ThingsForSale_Update]
@ID int,
@ModuleId int,
@UserID int,
@Category nvarchar(25),
@Description nvarchar(500),
@Price float
AS
UPDATE {objectQualifier}ThingsForSale
 SET ModuleId = @ModuleId, UserID = @UserID, Category = @Category, Description = @Description, Price = @Price
 WHERE (ID = @ID)
RETURN

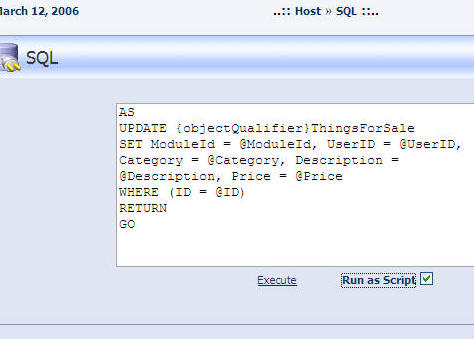

Select the "Run as Script" box and click "Execute".
Watch the progress bar in your web browser because when the script has been run the text in the window will shift and then... nothing... Perhaps we will get a "completed" message some day :)

What Did We Just Do?

We ran a SQL script that created the table and the stored procedures.

You will notice that the script is written like:

CREATE TABLE {databaseOwner}[{objectQualifier}ThingsForSale]

rather than the normal:

CREATE TABLE [dbo][ThingsForSale]

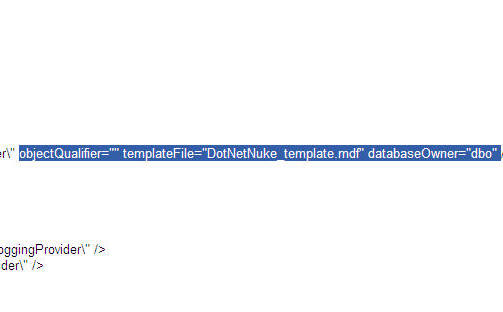

The script commands "{databaseOwner}" and "{objectQualifier}" indicate that they are to be replaced by configuration settings in the web.config file. Normally "{databaseOwner}" is set to ".dbo" and  "{objectQualifier}" is set to nothing (it would not have a setting). However, if alternate settings were indicated in the web.config file, those settings would be inserted into the script.

You must have the "Run as Script" box checked for this replacement to happen.





Register the module in DotNetNuke

While logged into your DotNetNuke site as "host" in the web browser, from the menu bar select "Host". Then select "Module Definitions".
Click the black arrow that is pointing down to make the fly-out menu to appear. On that menu select "Create New Module".

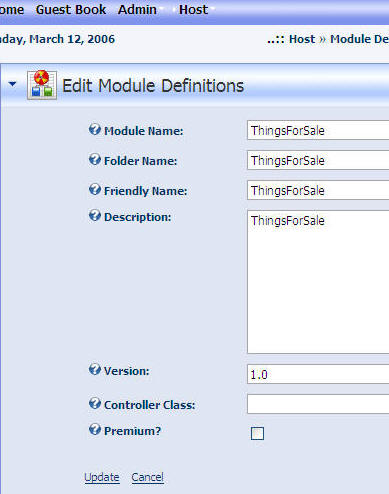

In the Edit Module Definitions menu:
  • Enter "ThingsForSale" for MODULE NAME
  • Enter "ThingsForSale" for FOLDER TITLE
  • Enter "ThingsForSale" for FRIENDLY TITLE
  • Enter "ThingsForSale" for DESCRIPTION
  • Enter "1.0" for VERSION

Then click UPDATE

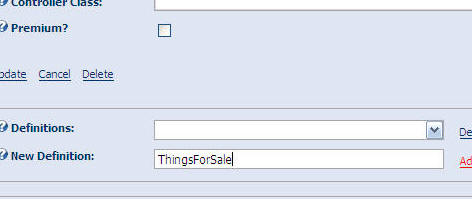

Enter "ThingsForSale" for NEW DEFINITION

Then click "Add"
Next, Click "Add Control"

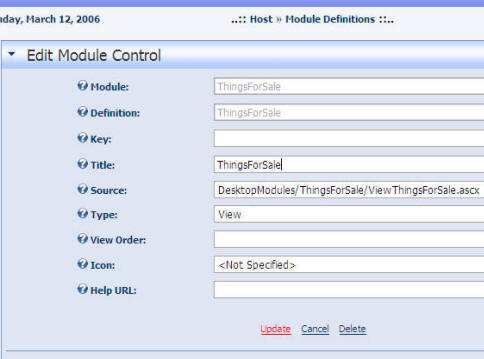

In the Edit Module Control menu:
  • Enter "ThingsForSale" for TITLE
  • Use the drop-down to select "DesktopModule/ThingsForSale/ViewThingsForSale.ascx" for SOURCE
  • Use the drop-down to select "View" for TYPE

Then click UPDATE

In the upper left hand corner of the website, under the PAGE FUNCTIONS menu click ADD.

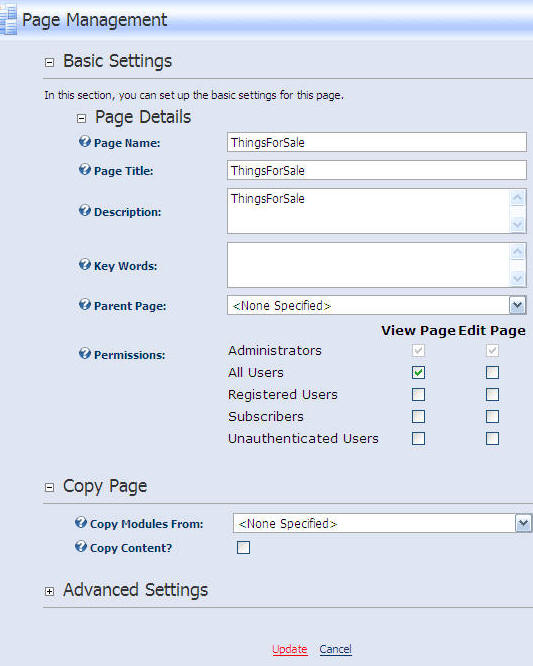

In the PAGE MANAGEMENT menu under PAGE DETAILS:
  • Enter "ThingsForSale" for PAGE NAME
  • Enter "ThingsForSale" for PAGE TITLE
  • Enter "ThingsForSale" for DESCRIPTION
  • Click the VIEW PAGE box next to ALL USERS

Then click UPDATE

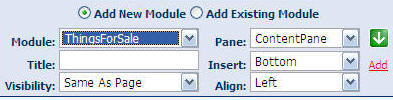

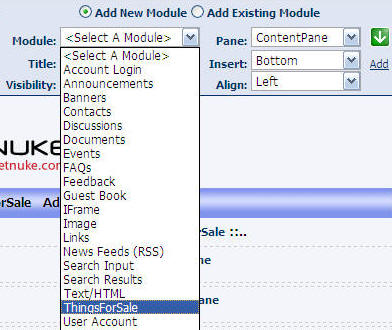

From the MODULE drop-down select "ThingsForSale".
Then click ADD.

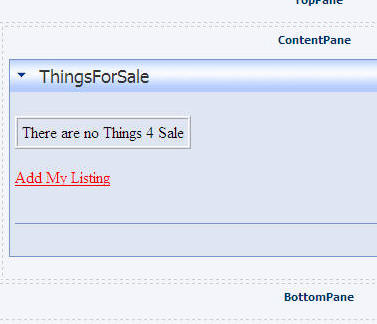

The module will now appear.
What Did We Just Do?
We have created a module definition and added the module to a page.


The tutorial is complete.
If you find any errors or omissions please email me at webmaster@adefwebserver.com
