Creating a DotNetNuke® Module Using CodeSmith Tools - Page 5 (Page 4)

Configure the Module

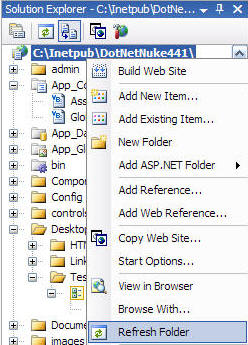

Return to Visual Studio and right-click on the root of the site in the Solution Explorer and select Refresh Folder

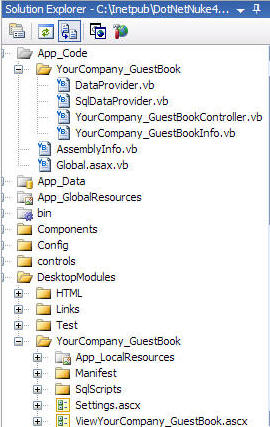

The files created by the templates will now appear in the App_Code folder and the DesktopModules folder

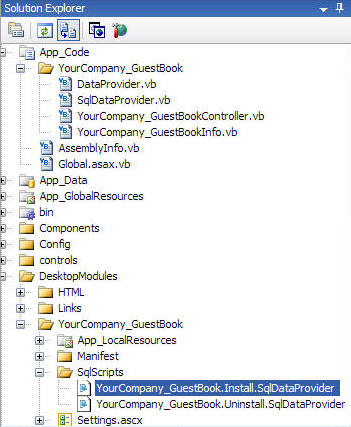

Locate the file:

 YourCompany_GuestBook.Install.SqlDataProvider

 located in the directory:

..\DesktopModules\YourCompany_GuestBook\SqlScripts\

Double-click on it

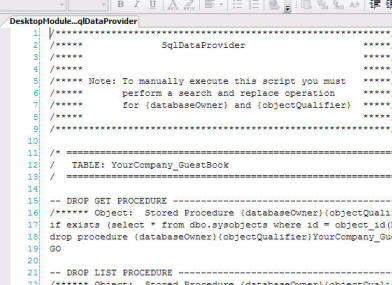

It will open up in the main window. Select all the text and copy it. You will paste this text into the SQL window in DotNetNuke in a later step.



From the toolbar, select Debug then Start Without Debugging

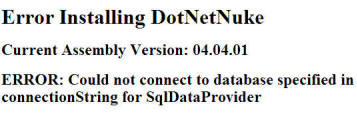

You may get an error that DotNetNuke could not connect to the database, because when using Microsoft SQL Server Express CodeSmith can lock the database.

To resolve this, close CodeSmith, then close the web browser that was opened by Start Without Debugging

Then from the toolbar, select Debug then Start Without Debugging again









Log in as the Host account



From the Host menu, select Module Definitions

From the Module Definitions menu, select Create New Module
From the drop-down located at the top of the module definition, select YourCompany_guestbook.dnn and click the Install link

This creates the settings needed to display the module and it's controls.




From the Host menu, select SQL

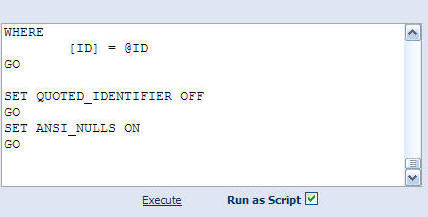

Paste the SQL text you copied in the earlier step, select the Run as Script box and click the Execute link.



In the upper left hand corner of the website, under the PAGE FUNCTIONS menu click ADD.

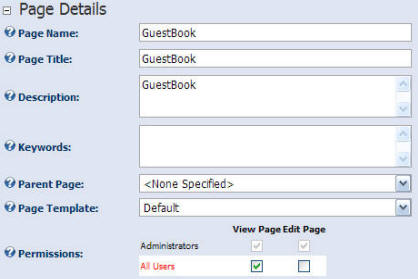

In the PAGE MANAGEMENT menu under PAGE DETAILS:

  • Enter "GuestBook" for PAGE NAME
  • Enter "GuestBook" for PAGE TITLE
  • Enter "GuestBook" for DESCRIPTION
  • Click the VIEW PAGE box next to ALL USERS

Then click UPDATE

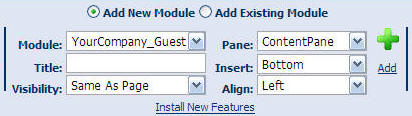

From the MODULE drop-down select YourCompany_GuestBook



Then click ADD

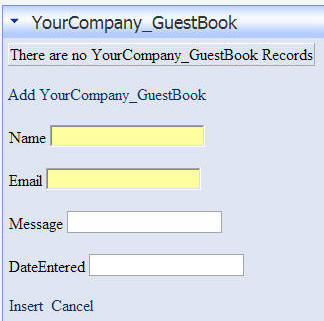

The module will now appear

The tutorial is complete.
